20" x 22" x 22" NEMA 3 Rated Aluminum Enclosure with Cooling Fan - Waterproof Electrical Cabinet for Outdoor/Industrial Equipment Protection

$1372.95

$2496.29

Safe 45%

$1372.95

$2496.29

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

18 people viewing this product right now!

SKU: 13099269

Guranteed safe checkout

Description

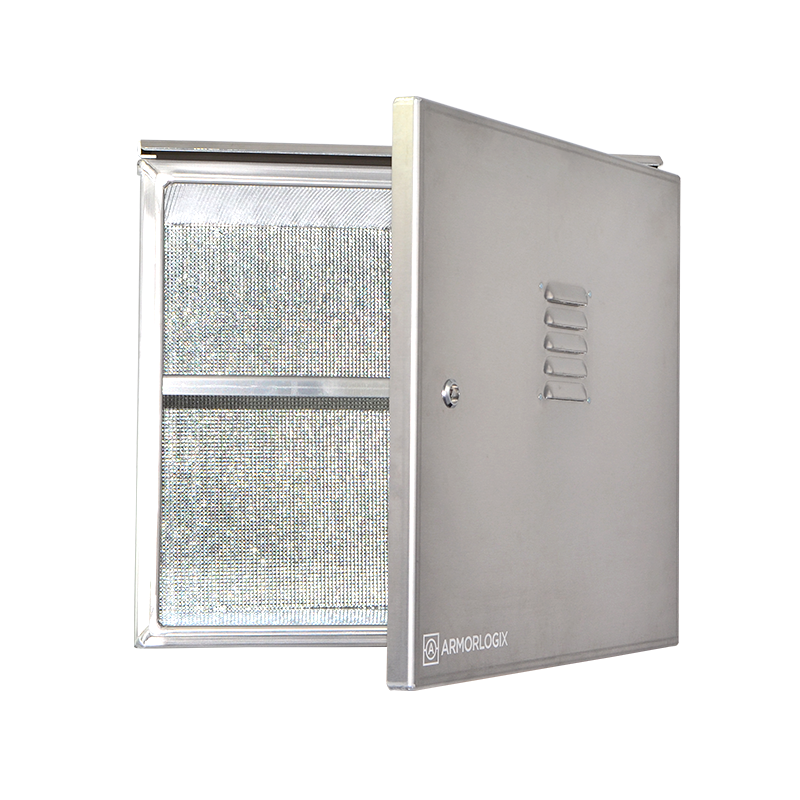

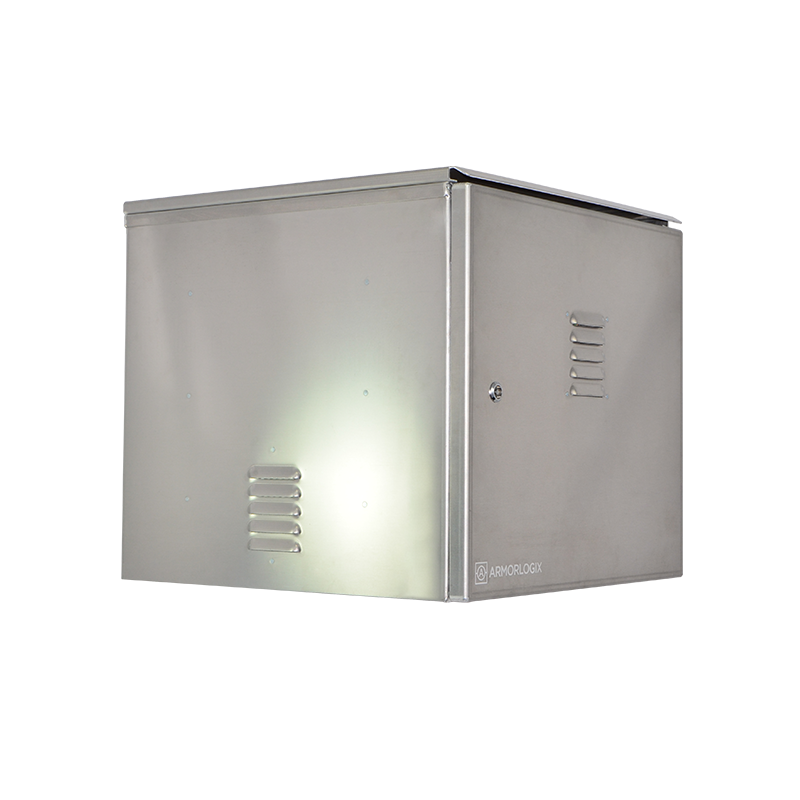

20″ X 22″ X 22″ NEMA 3 ENCLOSURE WITH FAN AL202222N3-FT

Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Screened Vents On Sides & Door
Adjustable / Removable Equipment Mounting Shelf
Security Lock with Key
A pair of Wall / Pole Enclosure Mount Plates are included

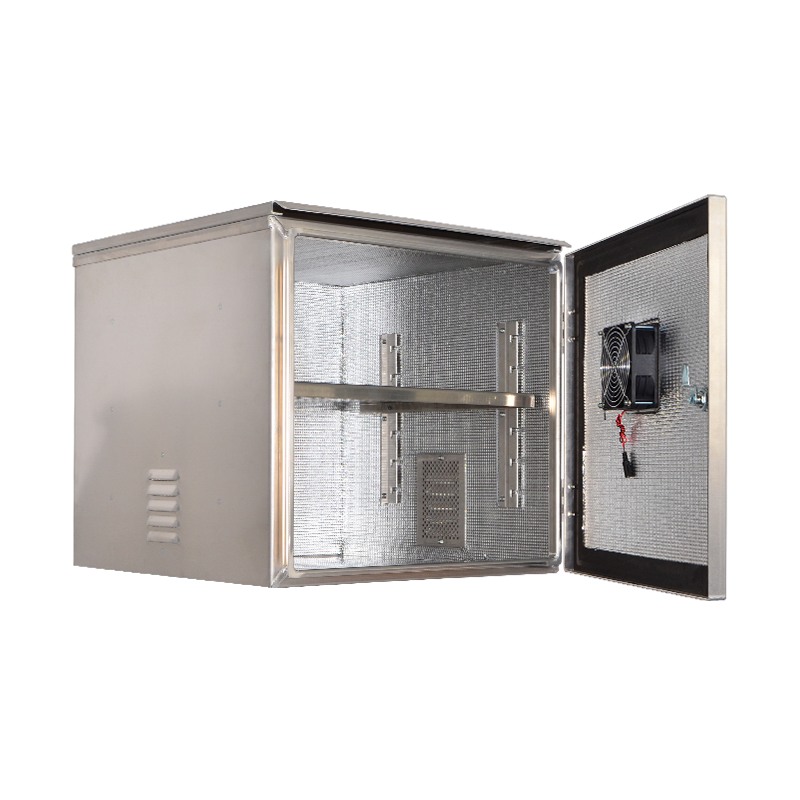

Includes an installed temperature-controlled thermostatic fan

OVERVIEW

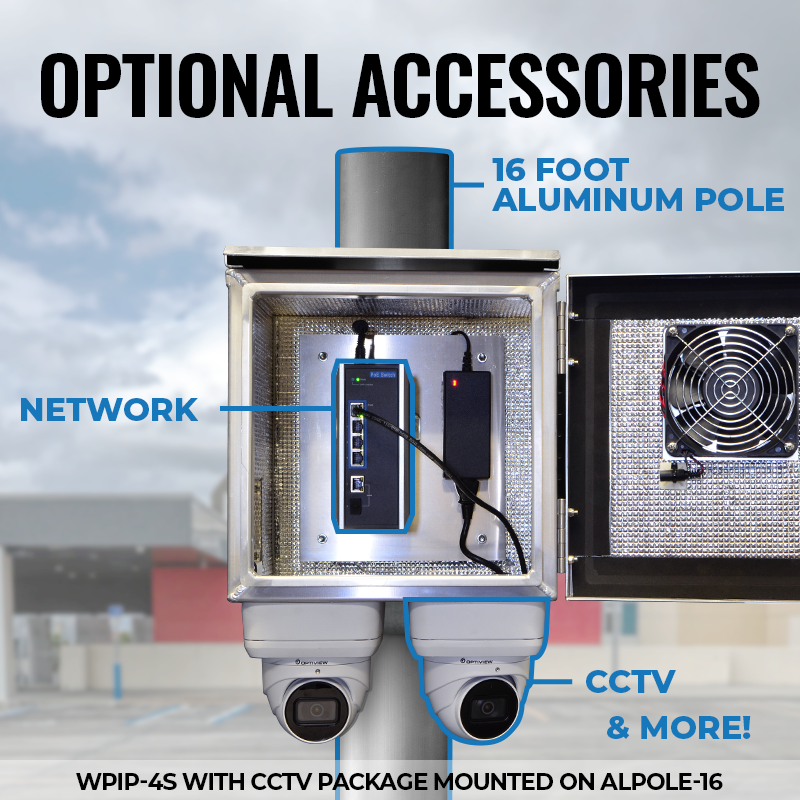

20″ x 22″ x 22″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, insulation, triangular cam lock, adjustable heavy-duty equipment shelf, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

Applications: The AL202222N3-FT is ideal for storing electrical equipment that needs to be securely stored on a flat surface, such as a laptop, large digital video recorder, 16+ port PoE switches, etc.

SPECIFICATIONS

Material		1/8" 5052 Aluminum
NEMA Rating		3
Mounting Brackets		Universal Wall / Pole Brackets - Bands not included (x2)
Door Seals		1/4" Weather Tight Neoprene
Equipment Shelf		1x (20.625" x 17.5")
Security Lock		Yes (2x keys included)
Dimensions: External		22.25” W x 20.875” H x 23” D
Dimensions: Internal Max		21.125” W x 19.625” H x 22.375” D
Dimensions: Internal Min		21.125” W x 19.625” H x 20.75” D
Weight		56 lbs.

RESOURCES

PDF Spec Sheet –
