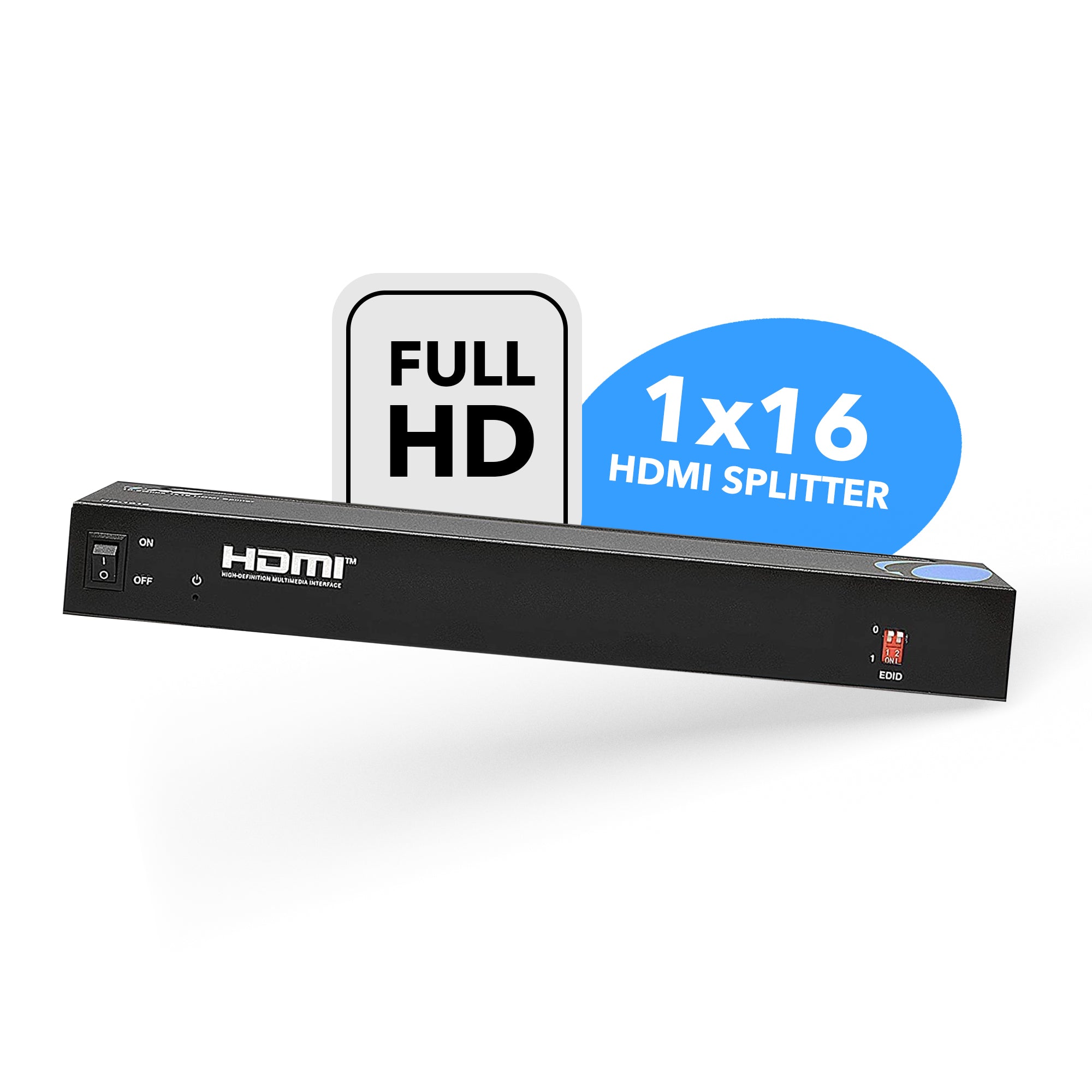

OREI HD-1016: 1080p 1x16 HDMI Splitter with Advanced EDID management
- HDMI 1.4 & HDCP 1.4 compliant
- Video resolutions up to 4K@30Hz
- Video Bandwidth of up to 10.2Gbps
- 3D video support, HDR & Dolby Vision pass-through
- EDID Management with 4 different modes
- Perfect for displaying content from 1 input on multiple displays up to 16)
- Robust build and easy plug-and-play installation with no additional drivers required
The HD-1016 HDMI splitter is an ideal solution for displaying content from a single source on up to 16 mirrored displays. This splitter is compliant with HDMI 1.4 and HDCP 1.4 standards, supporting video resolutions up to 4K@30Hz with 3D video, HDR, and Dolby Vision pass-through. It features EDID management with four modes, providing you with more control over video and audio quality. This device can be used in various settings such as digital signage, educational uses, corporate environments and many more. The HD-1016 comes with a robust build and an easy plug-and-play installation with no additional drivers.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 16 × HDMI [Type A, 19-pin female] |

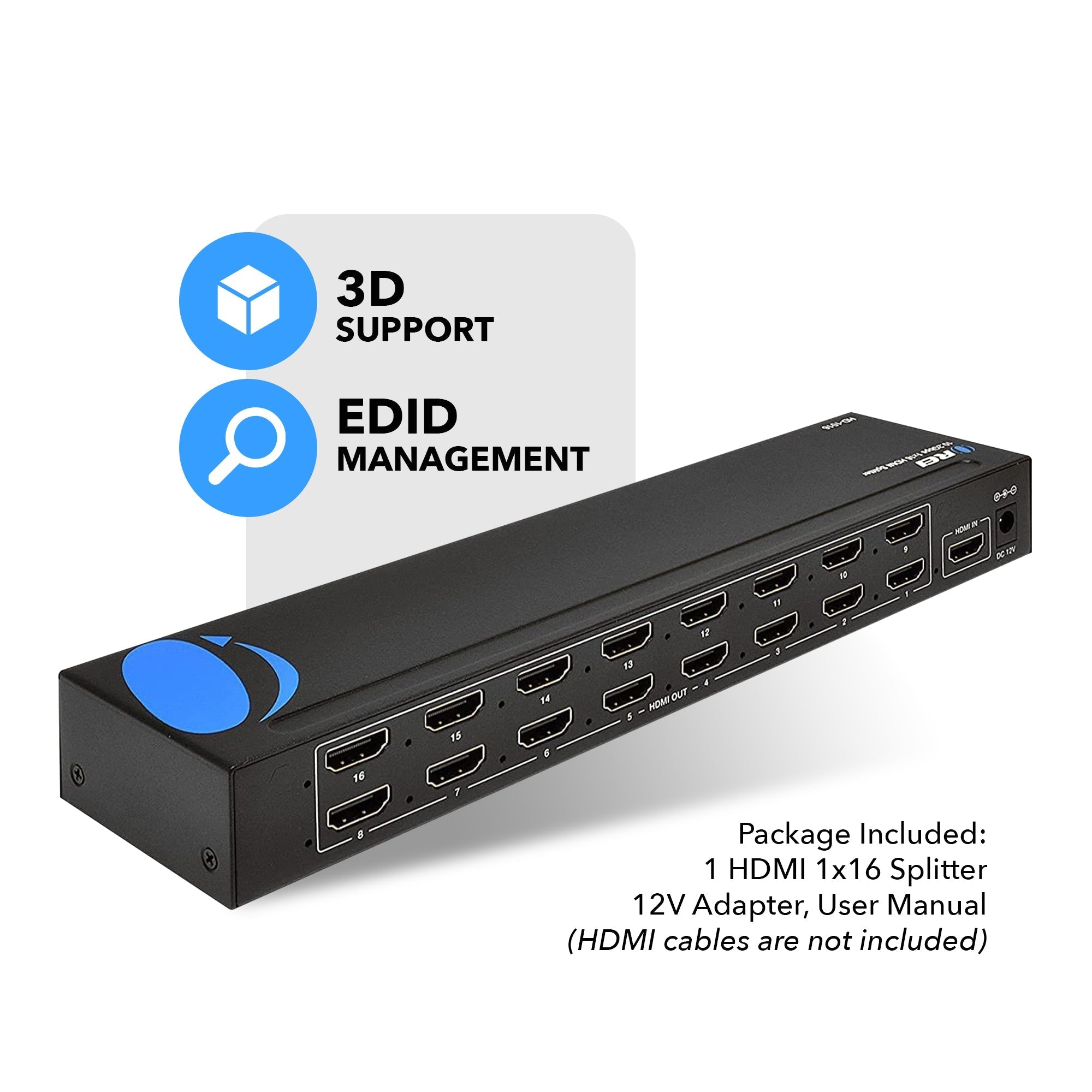

PACKAGE CONTENTS
| 1x HD-1016 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2Gbps |
| Video Resolutions: | Up to 4K@30Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 7.8W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 251mm/9.88in | |
| Width: | 60mm/2.36in | |
| Height: | 30mm/1.18in | |
| Weight: | 500g/17.64oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
